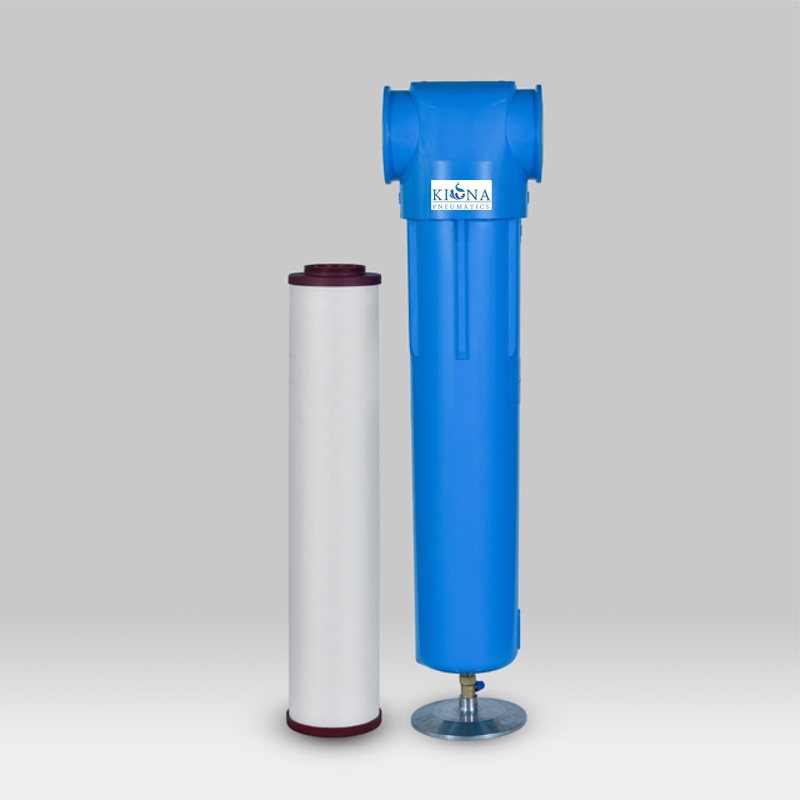

Activated Carbon Filters

Product Details & Description

Oil vapor can easily get through the coalescing filters in a state of gaseous, so the adsorptive filter must provide large activated carbon adsorption bed. Because the damp air will reduce the adsorptive ability of the activated carbon, the adsorptive filter usually installed after the adsorptive dryer, in order to guarantee effective removal of oil vapor and peculiar odor. it’s not used to remove the liquid oil or aerosols, thus poor maintenance and lack of pre-filter will accelerate its invalidation.

Technical Specification:
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g)
For application in other working pressure, please refer to the correction factors.

Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Description

MODELPIPE SIZEFLOW RATESQTYDIMENSION
L/SM3/minSCFMWDH
VKB010RC1/2"16.7135.519679252
VKB020RC3/4"251.55319679252
VKB030RC3/4"301.863.619679286
VKB040RC1"33.327119679286
VKB060RC1"603.61271138111357
VKB070RC1"83.351771138111458
VKB080RC1-1/2"1257.52651138111458
VKB090RC2"166.710353.11174142558
VKB100RC2-1/2"216.7134591174142558
VKB110RC2"283.3176001174142838
VKB120RC2-1/2"316.7196711174142838
VKB130RC3"416.7258831220184645
VKB140RC4"466.7289891220184645
VKB150RC3"683.34114481220184902
VKB160RC4"8004816951220184902
Technical EquipmentsMaxi.operating pressure: 16 bar
Maxi. operating temperature: 80*C
Mini. operating temperature:1.5*C

CONNECTION FACTOR:

PressureBar12345678910111213141516
Psi152944597387100116131145160174189203219232
Correction factor0.380.530.650.760.850.9311.071.131.191.231.311.361.411.461.51

Package:
Net Weight: 1.04KG
Inner Box Size: 31.5*13.0*13.5cm
